GRANIT – 3-D section treatment table with three dimensional adjustment

Granit is a modern and functional 3 dimensional table. It may be use for kinesiotherapy, manual therapy and massage and other types of therapy (eg. Mc Kenzie). It’s stabile construction allows safe and precise therapy.

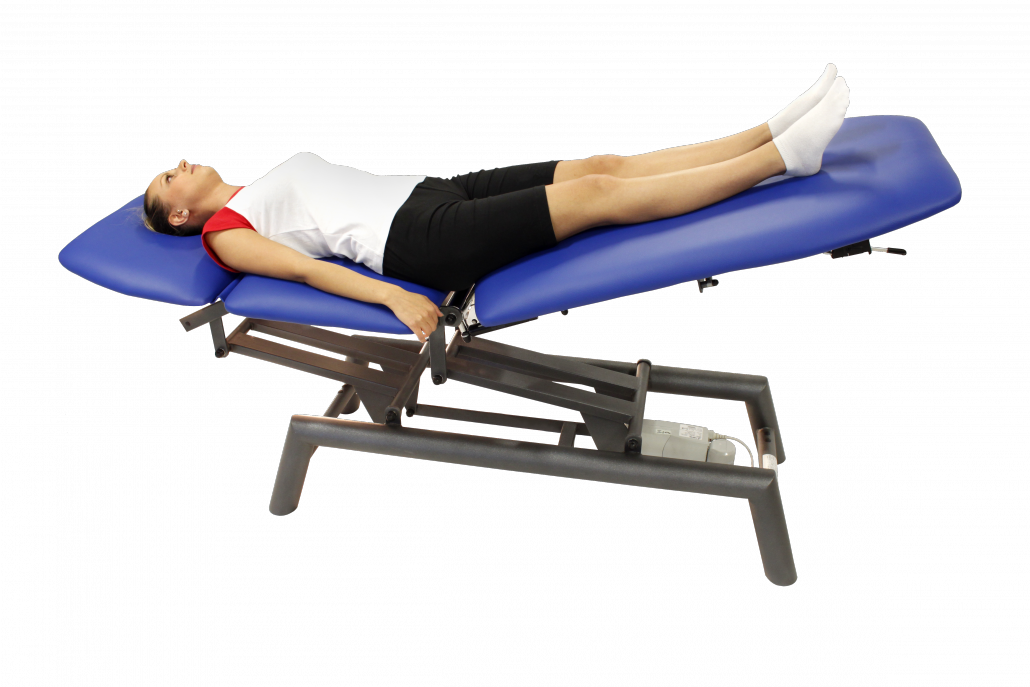

This table has a possibility to vary the patient position in three space dimensions during treatment: lateral flexion, horizontal flexion/extension and rotation. That means that a therapist may comfortable, easy and precise stabilize the patient in needed position. The height of the table plate is electrically adjusted through the motor with the use of remote control. Another advantage of this table is its modern design and simple use.

OPTIONAL EQUIPMENT:

  • 3 sections headrest (armrest) (14.501.013)*
  • Central wheels system for mobility (with holders) [2] (14.501.016)
  • Paper roll holder (14.501.018)*
  • Fixing rods for stabilization belts  (14.501.017)

    * Attention: is not possible to equip Granit with 3 sections headrest and paper roll holder at once.

TECHNICAL DATA:

  • Dimensions: 2000mm x 660mm
  • Maximum weight of patient: 150kg
  • Weight of table: 80kg
  • Table height adjustment: 490 – 1020mm
  • Headrest angle-adjustment: from -35° up to 55°
  • 3D Leg rest adjustment:
    – Frontal plane (flexion/extension) +70/-30°
    – Sagital plane (side bend) +/- 15°
    – Transversal plane (rotation) +/- 10°
  • Headrest:
    – 1 section with face hole
    – 3 sections (2 armrests) – optional

PRODUCT GALLERY
